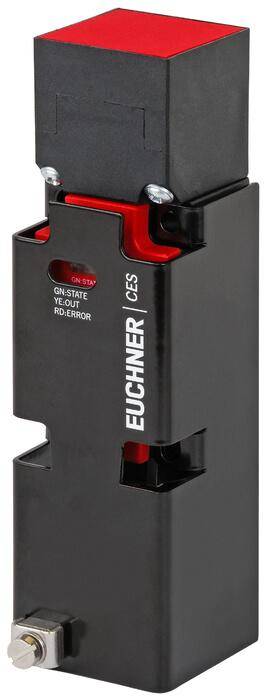

CES-A-C5H-01-EX

Характеристики

Производитель

—

Euchner

Гарантия

—

12 месяцев

Сертификаты

—

Доставка

—

от 3 рабочих дней до нашего склада в (DE)

Состояние

—

Новый

Цена по запросу

В наличии на складе производителя

Под заказ

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Для подробной информации,
обратитесь пожалуйста к менеджеру

Цена предоставляется по запросу, сроки поставки после актуализации цены товара

Описание

CES-A-C5H-01-EX (Order no. 097945) от Euchner — продукция Техника безопасности в соответствии с директивой ATEX, которая гарантирует эффективность и устойчивость в работе. Компания Siderus предлагает продукцию, подходящую для различных отраслей и сфер применения

Что получает клиент:

Выгодные условия поставки и ценообразования
Профессиональная помощь в выборе и эксплуатации
Официальные поставки оригинальной техники
Прямые поставки и оптимальные сроки доставки
Своевременная отгрузка и логистика по России

☎ Звоните по номеру 8 (800) 600-53-98

ATEX version

With protective plate
Suitable for use in zones 2 and 22 (gases and dusts)
Safety switches as interlocking device of type 4
Safety switch with integrated evaluation electronics
Possible to switch pulsed signals
Two safety outputs (semiconductor outputs)
Up to category 4/PL e according to EN ISO 13849-1

Approach directionCan be adjusted in 90° steps Protective plateA protective plate included protects the safety switch against impacts on the housing and the ingress of a potentially explosive atmosphere. Each actuator is unique. The evaluation unit detects only the actuator that has been taught-in. Additional actuators can be taught in. Category according to EN ISO 13849-1Due to two redundantly designed semiconductor outputs (safety outputs) with internal monitoring suitable for:

CES-A-C5H-01, category 4 / PL e according to EN ISO 13849-1

LED indicator STATEStatus LED OUT/ERRORSafety outputs status / diagnostics LED (combined) Additional connections OUTMonitoring output (semiconductor) Attention:The operating distance may vary depending on the background material and installation situation. (Only in combination with actuator CES-A-BBA, CES-A-BCA) Typical operating distance For a side approach direction for the actuator and safety switch, a minimum distance of s = 4 mm must be maintained so that the operating distance of the side lobes is not entered. (Only in combination with actuator CES-A-BPA) Typical operating distance For a side approach direction for the actuator and safety switch, a minimum distance of s = 6 mm must be maintained so that the operating distance of the side lobes is not entered. Dimension drawing Wiring diagram (View of connection side on the safety switch) Dimension drawingWiring diagram(View of connection side on the safety switch) Technical dataApprovals Mechanical values and environment Dimensions According to EN 60947-5-2 Housing material Plastic PBT V0 GF30 Weight 0,4 kg Ambient temperature At UB = 24 V DC -20 ... 50 °C Degree of protection IP67 Mounting distance Between 2 read heads or 2 actuators min.80 mm Installation orientation Any Tightening torque Screws fastening bracket read head max.0,6 Nm Fixing screws housing max.1 Nm Ready delay max.3 s Reaction time After change in the actuation status max.180 ms Switching frequency max.1 Hz Dwell time min.0,5 s Connection M12 plug connector, 8-pin, screen can be applied Electrical connection ratings Operating voltage DC 21 ... 24 ... 27 V DC Regulated, residual ripple < 5 % Current consumption 80 mA Fusing (External) operating voltage 0,25 ... 8 A Rated insulation voltage Ui max.300 V Rated impulse withstand voltage Uimp max.1,5 kV EMC protection requirements In acc. with EN 60947-5-3 Degree of contamination (external, according to EN 60947-1) 3 STATE LED LED indicator Status LED OUT / ERROR LED indicator Safety outputs status / diagnostics LED (combined) Safety outputs LA / LB Type of output Semiconductor outputs, p-switching, short circuit-proof, electrically decoupled Output voltage LOW U(LA) / U(LB) 0 ... 1 V DC HIGH U(LA) U(+LA) - 1,5 ... U(+LA) V DC HIGH U(LB) U(+LB) - 1,5 ... U(+LB) V DC Output current per safety output 1 ... 100 mA Fusing External, safety circuit U(+LA) / U(+LB) 0.1 A medium slow-blow Switching load According to UL max. DC 24 V, class 2 Rated conditional short-circuit current max.100 A Discrepancy time (Between the operating points of both safety outputs) max.120 ms Power supply output load U(+LA) / U(+LB) 24 V DC 18 ... 27 V DC Monitoring output OUT Type of output Semiconductor output, p-switching, short circuit-proof Output voltage 0,8 x UB ... UB V DC Output current max.20 mA Work area Repeat accuracy R max.10 % Other Explosion protection incl. cover II3G Ex ic ec IIB T5 Gc X / II3D Ex ic tc IIIC T90°C Dc X For the approval according to UL the following applies Operation only with UL class 2 power supply, or equivalent measures Reliability values according to EN ISO 13849-1 Monitoring of the safety guard position Category 4 Performance Level PL e PFHD 3.7 x 10-9 Diagnostic Coverage (DC) 99 % Mission time 20 y In combination with Actuator CES-A-BPA-EXOperating distance Distance s, actuator Minimum distance for side approach direction min.6 mm Switch-on distance With center offset m=0 22 mm Assured switch-off distance Sar max.58 mm Assured operating distance Sao With center offset m=0 min.15 mm Switching hysteresis min.1 mm In combination with Actuator CES-A-BBA-EXOperating distance Distance s, actuator Minimum distance for side approach direction min.4 mm Switch-on distance With center offset m=0 20 mm Assured switch-off distance Sar max.40 mm Assured operating distance Sao With center offset m=0 min.18 mm Switching hysteresis min.2 mm
