Характеристики
Производитель
—
Hengstler
Гарантия
—
12 месяцев
Сертификаты
—
CE
Доставка
—
от 3 рабочих дней до нашего склада в (DE)
Состояние
—
Новый
Цена по запросу
В наличии на складе производителя
Под заказ
Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа
Для подробной информации,
обратитесь пожалуйста к менеджеру
обратитесь пожалуйста к менеджеру
Цена предоставляется по запросу, сроки поставки после актуализации цены товара
Описание

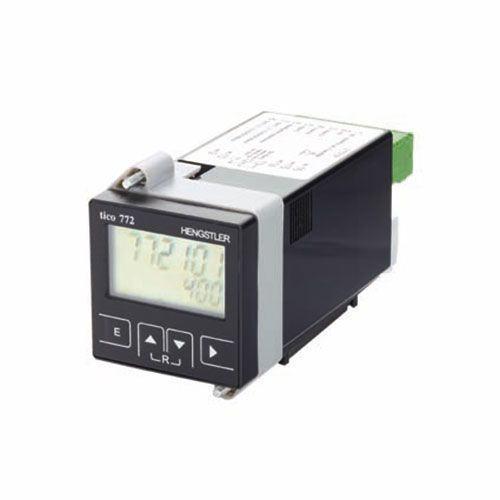

Hengstler tico 772 Tachometer от Hengstler — решение из линейки Тахометры, которое объединяет надежность и высокие эксплуатационные характеристики. Компания Siderus специализируется на промышленном оборудовании для любых условий работы
Преимущества работы с нами:
- Своевременная отгрузка и логистика по России
- Сопровождение специалистов от подбора до внедрения
- Поставляем исключительно оригинальные изделия
- Доставка напрямую от производителя без лишних посредников
- Выгодные условия поставки и ценообразования
☎ Для консультации и заказа: 8 (800) 600-53-98
Характеристики - Hengstler tico 772 Tachometer
The members of this product family are really multitalented, feature up to three presets and can be connected up using plug-and-play connectors. They allow very high counting frequencies of up to 60 kilohertz and are universally suitable for use as pulse-counters, tachometers, timers, shift or batch counters. The large multi-coloured 6-digit display is backlit and easy to read. The flexibility of the programming levels offered by this multifunctional counter allows it to be used as a tachometer and, if required, with many programmable functions. tico 772 Tachometer- Very simple operation
- Four different backlighting colours
- Large, easily read display
- Counting frequency up to 60 kHz
- Three presets
- Prescaler 0.0001 - 99.9999
- 6-digit
- 2-line
- count reading/presets
- leading zero suppression
- decimal point (up to 4 places)
- 1. Line 9.3 mm (0.4 in)
- 2. Line 7.2 mm (0.3 in)
- reflective LCD
- transflective positive LCD, black digits, backlit
- transmissive negative LCD, white digits, red or green backlit, background black
- 12-30 VDC
- 24-240 VAC
- manual reset
- electrical reset
- automatic reset
- < 200 mA at 12-30 VDC reflective
- < 250 mA at 12-30 VDC with backlight
- <250 mA at 24 VAC
- <50 mA at 115, 230 VAC
- <80 mA at 100-240 VAC switching power supply
- 12-30 VDC
- 24, 115, 230 VAC
- 100-240 VAC
- max. 60 kHz (TTL 20 kHz): Single-channel counting and directional input
- max. 60 kHz (TTL 20 kHz): differential or totalizing operation
- channel (A+B together)
- max. 30 kHz (TTL 20 kHz): phase discriminator 1- or 2-fold evaluation
- max. 15 kHz (TTL 15 kHz): phase discriminator 4-fold evaluation
- attenuated 30 Hz
- For further details, see graphic and manual.
- ext. backup
- DC: 0.16 AT (IEC 127), DC: 0.2 AT (UL 198)
- 24 VAC: 315 mAT
- 115 VAC: 63 mAT
- 230 VAC: 32 mAT
- 100-240 VAC 630 mAT
- ext. backup 230 V
- 2.5 A mT
- transformer power supply: 12-24 VDC (load-dependent)
- max. 50 mA
- switch power supply24 VDC -5%
- max. 115 mA, max. capacitative load 470 µF
- 8 V or 4 V at TTL levels
- amplitude max. 40 VDC
- display blinks
- when presets 0,1 or 2 are active
- Varistor max. 250 VAC / 30 VDC / 5 A
- Varistor min. 5 VAC / 5 VDC / 10 mA
- Delay < 10 ms
- DC supply: PNP output 12 - 30 VDC, max. 50 mA
- transformer performance (24, 115, 230 VAC): PNP output 12 - 24 VDC, max. 30 mA
- switch power supply 100-240 VAC: PNP output 24 VDC, max. 50 mA
- DC supply: PNP output 12 - 30 VDC, max. 20 mA
- transformer performance (24, 115, 230 VAC): PNP output 12 - 24 VDC, max. 20 mA
- switch power supply 100-240 VAC: PNP output 24 VDC, max. 20 mA
- Only for transformers (24, 115, m230 VAC:
- The energy load on the outputs (sensors 12-24 VDC, out1, out2, Appl.-Outp.) may not be more than 65 mA total.
- Single channel add or sub, directional input,
- differential operation add / sub, totalizing operation add / add,
- phase discriminator 1-, 2- or 4-fold evaluation
- absolute or trailing preset
- range signal/value limit (Sign. 1 < VW1
- Sign. 2> VW2)
- Output: prescaler-out
- preset 0-out
- direction-out
- input: additional counter input add / sub
- reset
- set
- gate
- keylock
- hold
- teach in
- differential operation add/sub
- totalizing operation add/add
- 6-digit
- 2-line
- count reading/presets
- leading zero suppression
- decimal point (up to 4 places)
- 1. Line 9.3 mm (0.4 in)
- 2. Line 7.2 mm (0.3 in)
- reflective LCD
- transflective positive LCD, black digits, backlit
- transmissive negative LCD, white digits, red or green backlit, background black
- 12-30 VDC
- 24-240 VAC
- manual reset
- electrical reset
- automatic reset
- < 200 mA at 12-30 VDC reflective
- < 250 mA at 12-30 VDC with backlight
- <250 mA at 24 VAC
- <50 mA at 115, 230 VAC
- <80 mA at 100-240 VAC switching power supply
- 12-30 VDC
- 24, 115, 230 VAC
- 100-240 VAC
- max. 60 kHz (TTL 20 kHz): Single-channel counting and directional input
- max. 60 kHz (TTL 20 kHz): differential or totalizing operation
- channel (A+B together)
- max. 30 kHz (TTL 20 kHz): phase discriminator 1- or 2-fold evaluation
- max. 15 kHz (TTL 15 kHz): phase discriminator 4-fold evaluation
- attenuated 30 Hz
- For further details, see graphic and manual.
- ext. backup
- DC: 0.16 AT (IEC 127), DC: 0.2 AT (UL 198)
- 24 VAC: 315 mAT
- 115 VAC: 63 mAT
- 230 VAC: 32 mAT
- 100-240 VAC 630 mAT
- ext. backup 230 V
- 2.5 A mT
- transformer power supply: 12-24 VDC (load-dependent)
- max. 50 mA
- switch power supply24 VDC -5%
- max. 115 mA, max. capacitative load 470 µF
- 8 V or 4 V at TTL levels
- amplitude max. 40 VDC
- display blinks
- when presets 0,1 or 2 are active
- Varistor max. 250 VAC / 30 VDC / 5 A
- Varistor min. 5 VAC / 5 VDC / 10 mA
- Delay < 10 ms
